RescueME PLB1 Personal Locator Beacon

RescueME PLB1 Personal Locator Beacon

  • Home RescueME PLB1 Personal Locator Beacon
zoom
RescueME PLB1 Personal Locator Beacon
RescueME PLB1 Personal Locator Beacon
RescueME PLB1 Personal Locator Beacon
RescueME PLB1 Personal Locator Beacon
RescueME PLB1 Personal Locator Beacon

All Sat Communications

RescueME PLB1 Personal Locator Beacon
$465.00
$465.00
  • Description
  • Features
  • Specifications
  • Reviews

Wherever you are, at sea, on land, the RescueME PLB1 provides the reassurance that global emergency services can be alerted by the press of a button.

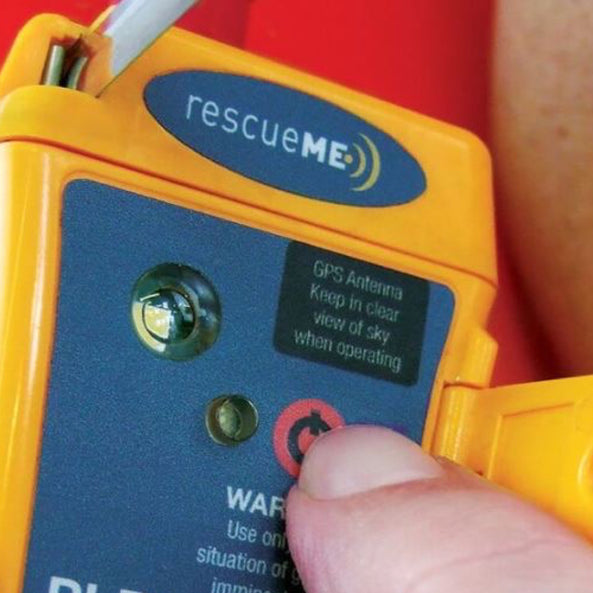

The RescueME PLB1 can be operated with a single hand in even the most challenging situations. A simple spring-loaded flap covers the activation button preventing inadvertent use.

The RescueME PLB1 is provided with a flotation pouch to fit the PLB into to enable it to float. Please note that the PLB will not float in an operating position in the pouch. Please ensure the PLB is firmly attached to the pouch with the provided lanyard, using suitable self-locking knots.

Not just kayaking it's also suitable for 4WDing, camping, canyoning, bush walking or any remote or solitary activity where help may be needed.

  • 30% smaller (typ) by volume
  • Easily fits in a lifejacket *
  • Retractable Antenna
  • 7 Year Battery Life
  • 7 year warranty
  • 24+ hour operational life
  • High brightness strobe light >1candela
  • 66 channel GPS receiver
  • Unique mounting clip
  • Operates on the global Cospas Sarsat rescue system
  • Free to use, no subscription charges
  • Supplied with a free flotation pouch

* Always refer to the manufacturer for specific instructions before installing this product directly to your life jacket.

  • Frequency - 406.040MHz
  • Tolerance - ±1kHz
  • Output Power - 5watts (nominal)
  • Stability - 2ppb/100ms
  • Modulation - Phase ±1.1radians (peak)
  • Emission Designator - 16K0G1D
  • Encoding - Bi-phase L
  • Data Rate - 400bps
  • Duration - 520ms
121.5MHz Homing Beacon
  • Frequency - 121.5MHz
  • Stability - ±50ppm
  • Output Power - 25-100mW PERP
  • Modulation - Swept Tone AM
  • Emission Designator - 3K20A3X
  • Modulation Depth - 85-100>
  • Sweep Range - 400Hz – 1300Hz
Low Duty Cycle Strobe Light
  • Light Type - High intensity LED
  • Output Power - ~1candela
GPS Receiver
  • Sensitivity Cold Start
  • -148dBm
  • Sensitivity Re-acquisition -163dBm
  • Satellites channels tracked - 60
  • GPS Antenna -Microstrip patch
Battery
  • Type - Lithium Primary
  • Chemistry - Manganese Dioxide (LiMnO2)
  • Operational Life ->24hours @ -20°C
Environmental
  • Operating Temperature Range - -20°C to +55°C
  • Storage Temperature Range - -30°C to +70°C
  • Waterproof - 15metres at +20°C
  • Drop -1metre @ -30°C
Dimensions
  • Height - 77mm (3.0″)
  • Width - 51mm (2.1″)
  • Depth - 32.5mm (1.3″)
  • Weight - 116g
Standards
  • Cospas-Sarsat -T.001 / T.007
  • ETSI - EN302 152
  • RTCM - SC11020
  • FCC - CFR47 part 95K
